Fine Pitch XS Series
Fine Pitch XS Series
Fine Pitch LED Screen- Pixel pitch: P1.267 P1.461 P1.58 P1.9
- Cabinet size: 608mm*342mm
- HUB wireless connection, ultra-light and ultra-thin, quick and easy installation. Low brightness and high gray, fine image quality.
Specifications
| Model | XS1.267 | XS1.461 | XS1.58 | XS1.9 |
|---|---|---|---|---|
| Pixel Pitch | 1.267mm | 1.461mm | 1.58mm | 1.9mm |
| Module Size | 304*114mm | 304*114mm | 304*114mm | 304*114mm |
| Module Resolution (dot) | 240*90 | 208*78 | 192*72 | 160*60 |
| Cabinet Size | 608mm*342mm | 608mm*342mm | 608mm*342mm | 608mm*342mm |
| Cabinet Resolution (dot) | 480*270 | 416*234 | 384*216 | 320*180 |
| Maintenance Method | Front maintenance | Front maintenance | Front maintenance | Front maintenance |
Key Features
Ultra-thin and Light
The cabinet weight is only 5.8kg, and the thickness is only 34mm.

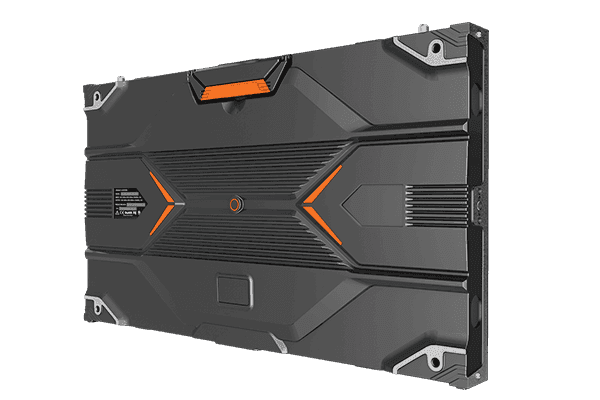

Die-cast Aluminum Cabinet
Adopting aluminum alloy die-casting technology and high-precision CNC processing, it is light in weight, has excellent heat dissipation performance, is corrosion-resistant, has a solid structure, and is easy to install and transport.
Cabinet Modularly Designed
Compatible with a variety of different pitches, can be quickly assembled into 2K/4K/8K screen sizes.

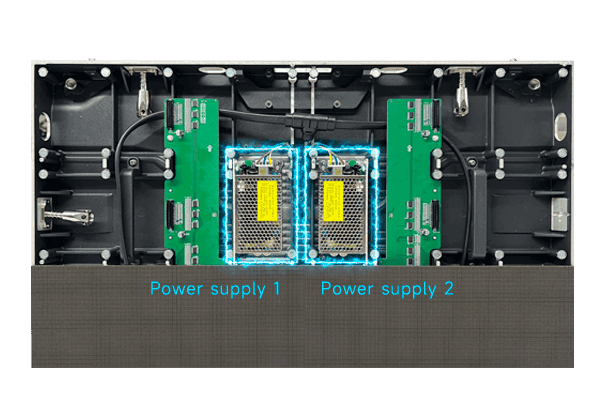

Power Supply Dual Backup
Available for cable connection or plug-in connection. Dual power supply, dual receiving card backup, more stable.

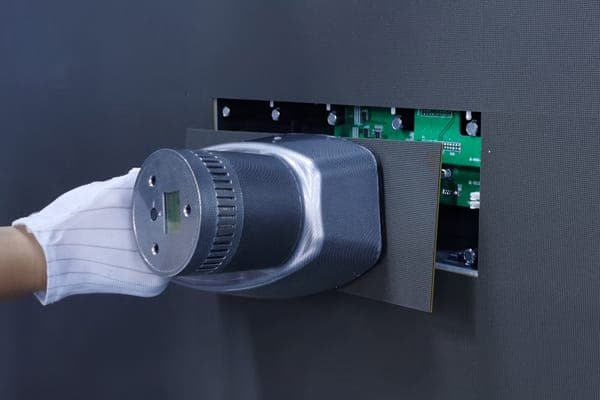

Front Maintenance
The cabinet, module, power supply, receiving card, and adapter board are all designed for front maintenance. You only need a magnetic suction tool to easily remove any module.
