Fine Pitch XP Series
Fine Pitch XP Series
Fine Pitch LED Screen- Pixel pitch: P0.9375 P1.25 P1.5625 P1.875
- Cabinet size: 600*337.5mm
- HUB wireless connection, ultra-light and ultra-thin, quick and easy installation. Low brightness and high gray, fine image quality.
Specifications
| Model | XP0.9375 | XP1.25 | XP1.5625 | XP1.875 |
|---|---|---|---|---|
| Pixel Pitch | 0.9375mm | 1.25mm | 1.5625mm | 1.875mm |
| Module Size | 300*168.75mm | 300*168.75mm | 300*168.75mm | 300*168.75mm |
| Module Resolution (dot) | 320*180 | 240*135 | 192*108 | 160*90 |
| Cabinet Size | 600mm*337.5mm | 600mm*337.5mm | 600mm*337.5mm | 600mm*337.5mm |
| Cabinet Resolution (dot) | 640*360 | 480*270 | 384*216 | 320*180 |
| Maintenance Method | Front maintenance | Front maintenance | Front maintenance | Front maintenance |
Key Features
Ultra-thin and Light
The cabinet weight is only 5.8kg, and the thickness is only 43.5mm.

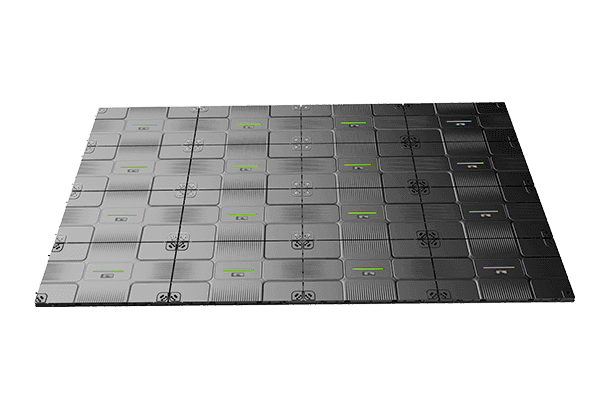

Die-cast Aluminum Cabinet
Adopting aluminum alloy die-casting technology and high-precision CNC processing, it is light in weight, has excellent heat dissipation performance, is corrosion-resistant, has a solid structure, and is easy to install and transport.

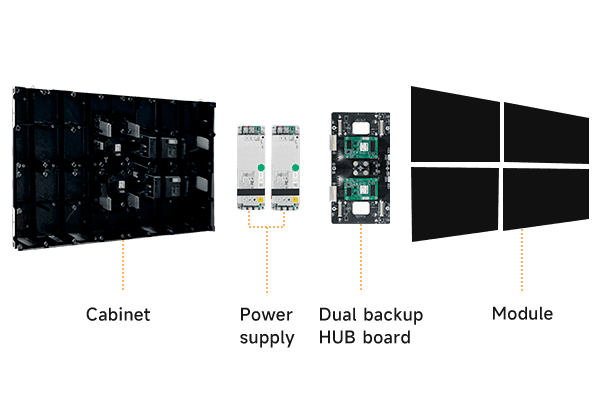

Power Supply Dual Backup
Available for cable connection or plug-in connection. Dual power supply, dual receiving card backup, more stable.

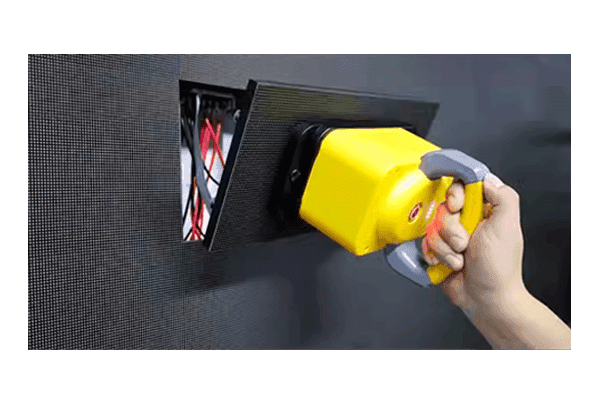

Front Maintenance Design
The cabinet, module, power supply, receiving card, and adapter board are all designed for front maintenance. You only need a magnetic suction tool to easily remove any module.
Low brightness, high grayscale, high refresh rate
Adopting high grayscale transmission driver IC, the image has more layering and the picture quality is clearer and more delicate.
