Transparent Film LED Screen SF Series
Transparent Film LED Screen SF Series
Transparent LED Screen- Pixel pitch: P4-8 P6.5 P5-10 P8 P10 P16 P20 P30 P40
- Transparent Film LED Screen is a perfect match for glass curtain walls due to its lightness, no need for steel frame structure, easy installation and maintenance, and good transparency. It can be applied to glass curtain walls without any sense of disobedience.
Specifications
| Model | SF4-8 | SF6.5 | P5-10 | SF8 | SF10 | SF16 | SF20 | SF30 | SF40 |
|---|---|---|---|---|---|---|---|---|---|
| Pixel Pitch | 4mm*8mm | 6.5mm | 5mm*10mm | 8mm | 10mm | 16mm | 20mm | 30mm | 40mm |
| Module Size | 1000*64mm | 1000*52mm | 1000*80mm | 1000*64mm | 1000*80mm | 1000*64mm | 1000*80mm | 1000*120mm | 1000*160mm |
| Cabinet Size (mm) | 1000*256/1000*512 | 1000*208/1000*416 | 1000*320/1000*640 | 1000*256/1000*512 | 1000*320/1000*640 | 1000*512 | 1000*320/1000*640 | 1000*480 | 1000*640 |
Key Features

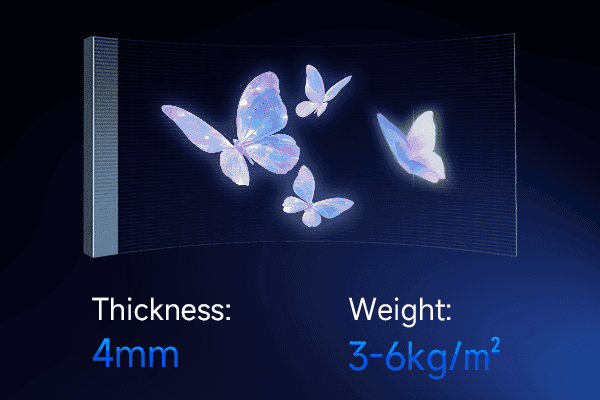

Ultra-light and ultra-thin
The Transparent Film LED Screen is lightweight, with a thickness of about 4mm and a weight of 3-6kg/square meter.

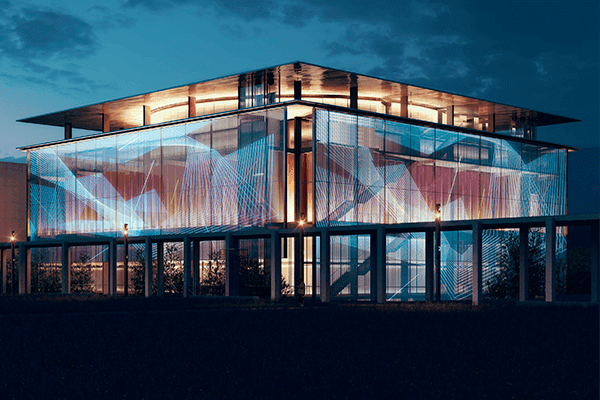

Simple structure
The structure is extremely simple, with high transparency, which does not affect the lighting of the glass curtain wall, and the transparency is as high as over 85%.
High flexibility
It can be bent and cut, there is no power box in the middle, it is not limited by size, it can be flexibly designed according to customer needs, and it is highly flexible.
Ultra-wide viewing angle
The viewing angle is up to 140 degrees, with no blind spots, no color cast, and the image is always perfect and seamless.

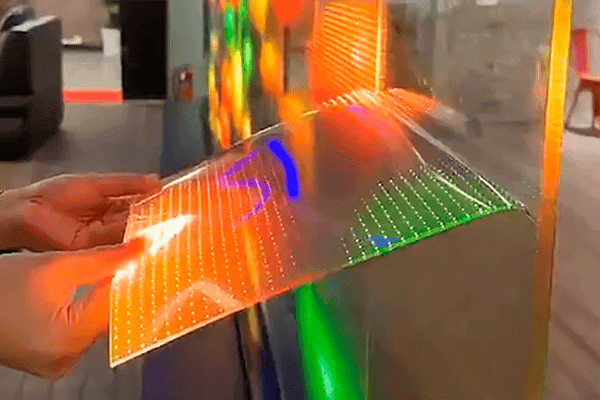

Easy installation, cost saving
No need for additional steel structure or change in the appearance of auxiliary buildings, effectively reducing transportation and installation costs.
Applications
