Transparent LED Screen ST Series
Transparent LED Screen ST Series
Transparent LED Screen- Pixel pitch: P3.91-7.82 P7.8-7.8
- Cabinet size: 500*1000mm & 1000*1000mm
- High transparency, transparency above 55%. Refresh rate ≥3840Hz, ultra-wide viewing angle, horizontal viewing angle up to 140°. Easy installation and maintenance, super silent power supply.
Specifications
| Model | P3.91-7.82 | P3.91-7.82 | P3.91-7.82 | P7.8-7.8 |
|---|---|---|---|---|
| Application | Indoor | Outdoor | ||
| Module Size | 500*125mm | |||
| Module Resolution (dot) | 128*16 | 128*16 | 128*16 | 64*16 |
| Cabinet Size | 500*1000mm | 1000*1000mm | 500*1000mm | 500*1000mm |
| Cabinet Resolution (dot) | 265*64 | 256*128 | 265*64 | 128*64 |
| Maintenance Method | Front maintenance / rear maintenance / front and rear maintenance (customizable according to project) | Front maintenance / rear maintenance / front and rear maintenance (customizable according to project) | Front maintenance / rear maintenance / front and rear maintenance (customizable according to project) | Front maintenance / rear maintenance / front and rear maintenance (customizable according to project) |
Key Features

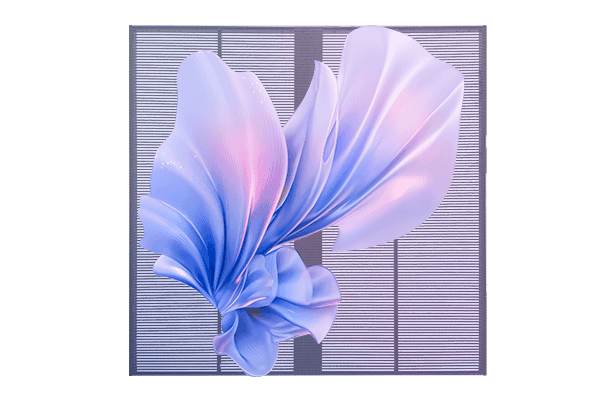

High transparency
The structure is simple, and the transparency can be as high as 55%, which does not affect the lighting. It can transform glass into an advertising medium and develop more valuable advertising spots.
Ultra-light and ultra-thin
The transparent led screen thickness is about 75mm and the weight is about 10kg/㎡.

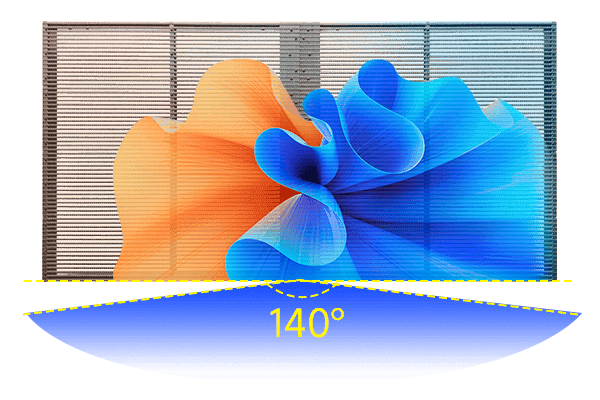

Ultra-wide viewing angle
The viewing angle is horizontal and vertical 140°, with a wide range and no color cast.

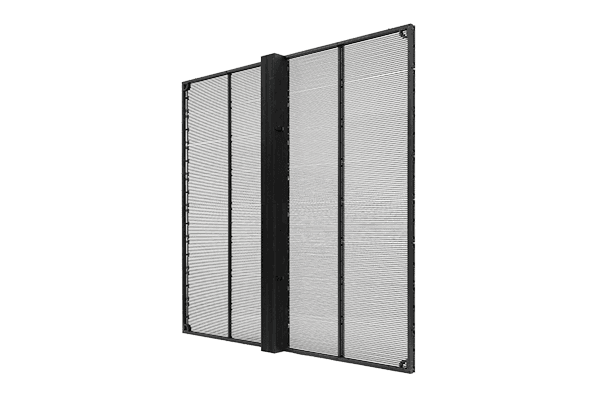

Easy installation and cost saving
No steel structure is required, which effectively saves transportation and installation costs.
Applications
