Indoor Fixed LED Screen GP Series
Indoor Fixed LED Screen GP Series
Fixed LED Screen- Pixel pitch: P1.25 P1.538 P1.86 P2 P2.5 P3.076 P4
- Module size: 320*160mm
- Cabinet size: 640*480*60mm
- GP Indoor Fixed Installation Series supports 320×160mm modules. Internal cabling, clean wireless rear. 3840Hz high refresh rate delivers smooth visuals with no motion blur.
Specifications
| Model | GP1.25 | GP1.538 | GP1.86 | GP2 | GP2.5 | GP3.076 | GP4 |
|---|---|---|---|---|---|---|---|
| Pixel Pitch | 1.25mm | 1.538mm | 1.86mm | 2mm | 2.5mm | 3.076mm | 4mm |
| Module Size | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Module Resolution (dot) | 256*128 | 208*104 | 172*86 | 160*80 | 128*64 | 104*52 | 80*40 |
| Cabinet Size | 640mm*480mm | 640mm*480mm | 640mm*480mm | 640mm*480mm | 640mm*480mm | 640mm*480mm | 640mm*480mm |
| Cabinet Resolution (dot) | 512×384 | 416×312 | 344×258 | 320×240 | 256×192 | 208×156 | 160×120 |
| Maintenance Method | Front maintenance | Front maintenance | Front maintenance | Front maintenance | Front maintenance | Front maintenance | Front maintenance |
Key Features
PWM driver IC
Smooth grayscale transitions and high refresh rate deliver lifelike visuals with vivid, true-to-life colors.
Energy Saving
Low-voltage driving ensures low power consumption and minimal heat generation, enabling safer, more stable continuous operation with greater energy efficiency.

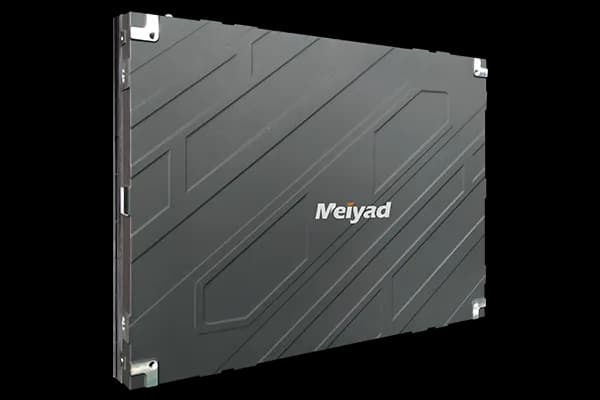

Die-cast aluminum cabinet
Excellent heat dissipation extends lifespan; high precision ensures seamless, flat splicing; lightweight design makes installation and transportation easier; strong structure resists deformation.
High Contrast
Accurately reproduces true-to-life colors, delivering richer image depth and more refined detail.

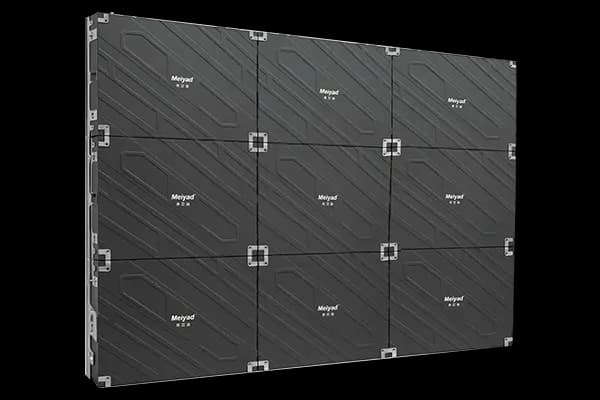

Wireless Rear
A flat rear design with no messy cabling enhances overall screen flatness, making installation, disassembly, and maintenance more convenient.

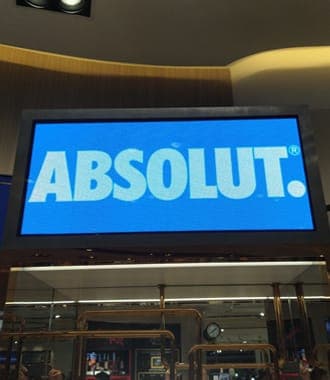

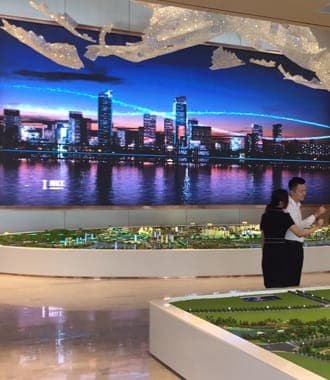

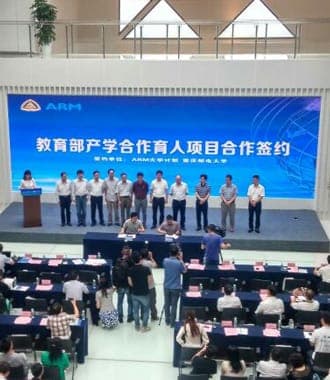

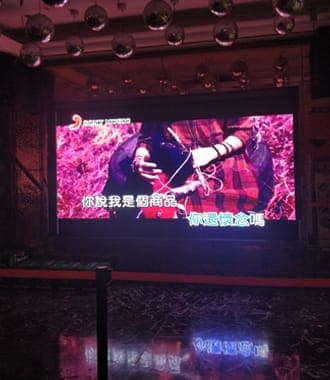

Applications
