All-in-one LED Screen
All-in-one LED Screen
All-in-one LED Screen- Optional 108″/ 135″/ 163″
- Optional P0.9375/P1.25/P1.5625
- Resolution up to 2K/4K
- 16:9 golden ratio adapts to all kinds of content fully
Specifications
| Model | CTV108′ | CTV135′ | CTV163′ |
|---|---|---|---|
| Display Dimensions (W*H, mm) | 2400×1350 | 3000×1688 | 3600×2025 |
| Cabinet Dimensions (W*H*D, mm) | 600mmx337.5mmx31mm | 600mmx337.5mmx31mm | 600mmx337.5mmx31mm |
| Panel ResolutionP1.25 | 1920*1080 | 2400*1350 | 2880*1620 |
| Panel ResolutionP1.5625 | 1536*864 | 1920*1080 | 2304*1296 |
| Panel ResolutionP1.875 | 1280*720 | 1600*900 | 1920*1080 |
| Module Size (W*H, mm) | 300*168.75 | 300*168.75 | 300*168.75 |
| Maintenance Method | Front maintenance | Front maintenance | Front maintenance |
Key Features

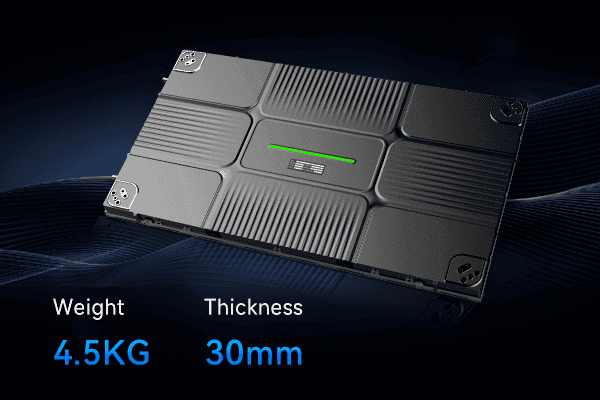

Ultra-light and ultra-thin
The cabinet weighs only 4.5KG and is only 30mm thick.

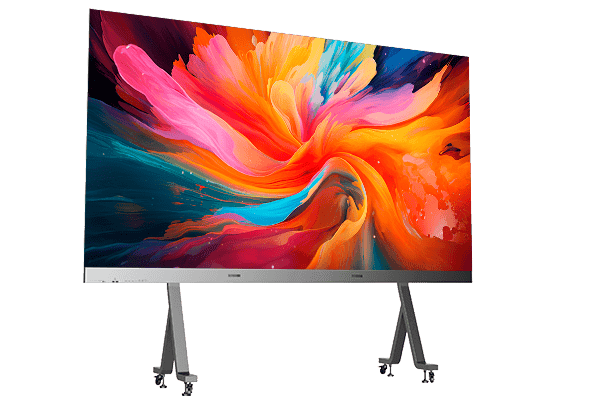

22-bit high grayscale
22 bit+ grayscale display, 65536-level grayscale calibration, more delicate picture display (customized product)

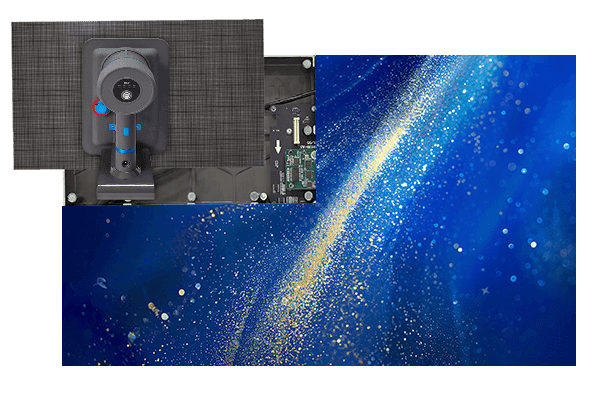

Front maintenance
Plug-in system box, the module lights up as soon as it is plugged in, no cables or power cords are required, reducing the failure rate.

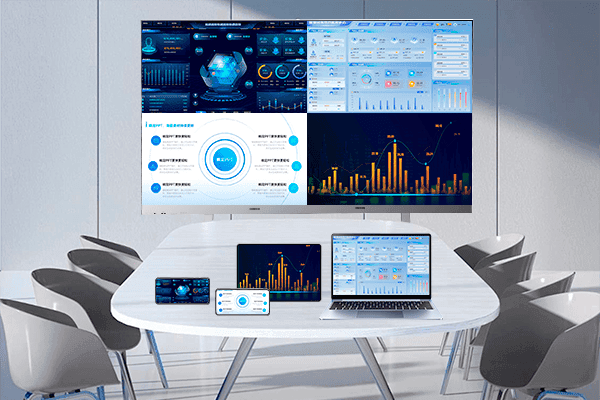

Support wireless screen projection
Support wireless screen projection from computers, mobile phones, and tablets, and supports up to four devices to display the screen at the same time, making the interaction simple and efficient.

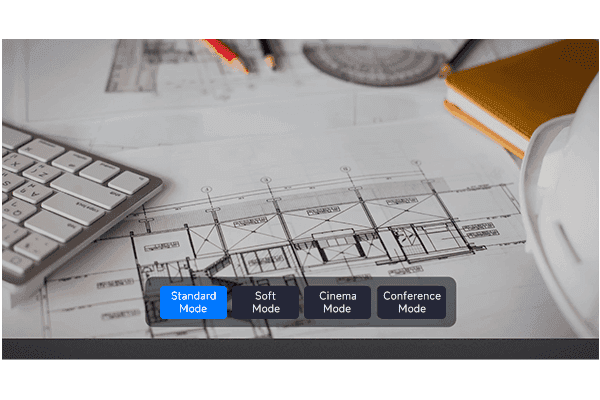

Multiple modes available
Ultra-wide color gamut display effect, supports switching between standard mode, soft mode, cinema mode, conference mode, eye protection mode and other display mode effects.
